How To Use Sample

Before you create a message, you need to load the message library. This library contains HL7 2.x definitions. A library was created for each HL7 version. Library names formatted as BSHL7XX.BSL, XX is HL7 version -without dot '.'- number.
For HL7 2.2 version library name BSHL722.BSL.
For HL7 2.3.1 version library name BSHL7231.BSL.


You can create message with two way.
  1. Classical way: You can access every message fields/grups in editor. You do not need know about name or Index. Editor helps with code completion. The disadvantage of this method is the problem of increase file/memory size. May be problem for mobile devices.

    For set/get data use AsString method.
    Name Description
    AsString Set/Get String value. The value is stored coded.
    RawValue Set/Get Value with raw value.
    adt_a01.MSH.FieldSeparator.RawValue:='|';
    Array Item For set/get array item use index specifier. Index is zero '0' based. For array count use RepCount suffix. ex:msg.PATIENT_RESULT[0]
    Count:=msg.PATIENT_RESULTRepCount;
    Obj:=msg.PATIENT_RESULT[0];


    Accessing sample:
    msg.PID.PatientName.FamilyName.AsString:='Doe';
    msg.PID.PatientName.GivenName.AsString:='John';

  2. Dynamically way: For use this way you need known segment name, group name and field name or their index.(Index is 1 based.). Editor can not help to you. The advantage of this method low memory footprint.

    Accesing with name and Index:
    msg.S['Name']:='Value';
    msg.S['Index']:='Value';
    msg.S['PID/PatientName/GivenName']:='John';
    msg.S['PID/PatientName/2']:='John';

    !!! Name parameter is case insensitive Below codes generate same result:
    msg.S['PID/PatientName/GivenName']:='John';
    msg.S['PID/PatientName/GiVeNnAmE']:='John';

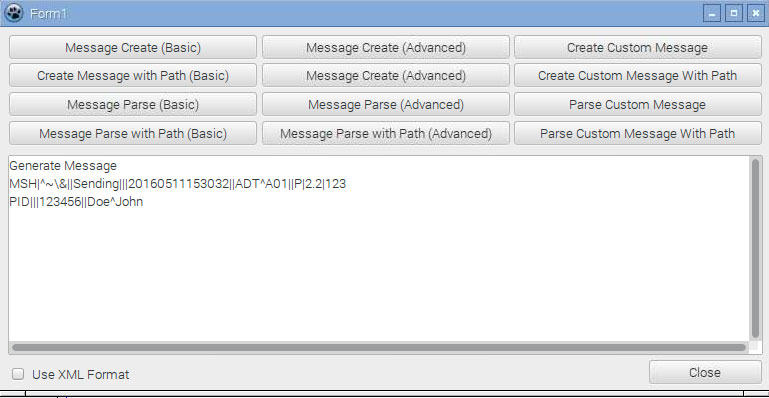

Download Demo
Demo project contains :


Creating Message (Classical way):
//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL722.BSL');
end;

procedure TForm1.bMessageCreateClick(Sender: TObject);
var
  msg : TbsADT_A01_22;
begin
  try
    msg := TbsADT_A01_22.Create;
    // Populate the MSH Segment
    msg.MSH.Sendingfacility.Value:='Sending';
    msg.MSH.Sequencenumber.Value:='123';
    // Populate the PID Segment
    msg.PID.PatientName.FamilyName.AsString:='Doe';
    msg.PID.PatientName.GivenName.AsString:='John';
    msg.PID.PatientIDInternalID[0].IDNumber.AsString:='123456';
    Memo1.Lines.Append(msg.AsHL7);
    // MSH|^~\&|||Sending|||||||||123
    // PID|||123456||Doe^John
  finally
    msg.Free;
  end;
end;

Creating Message (Dynamically way):
//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL722.BSL');
end;

procedure TForm1.bCreateMessagePathClick(Sender: TObject);
var
  msg :TBSHL7Message;
begin
  try
    msg:=TBSHL7Message.Create('ADT_A01','22');

    // Populate the MSH Segment
    msg.S['MSH/Sendingfacility']:='Sending';
    msg.S['MSH/Sequencenumber']:='123';

     // Populate the PID Segment
    msg.S['PID/PatientName/FamilyName']:='Doe';
    msg.S['PID/PatientName/GivenName']:='John';
    msg.S['PID/PatientIDInternalID(1)/IDNumber']:='123456';

    Memo1.Lines.Append(msg.AsHL7);

    // MSH|^~\&|||Sending|||||||||123
    // PID|||123456||Doe^John
  finally
    msg.Free;
  end;

end;



Message Parse (Classical way):
//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL722.BSL');
end;

procedure TForm1.bParseMessageClick(Sender: TObject);
var
  msg : TbsADT_A01_22;
  ASending  : string;
  ASeq      : string;
  AFName    : string;
  AGName    : string;
  AIDNumber : string;
begin

  try
    msg := TbsADT_A01_22.Create;

    msg.AsHL7:='MSH|^~\&|||Sending|||||||||123'+#13+
               'EVN|'+#13+
               'PID|||123456||Doe^John'+#13+
               'PV1|'+#13+#10;

    // Get the Sendingfacility value
    ASending := msg.MSH.Sendingfacility.Value; //Sending
    ASeq     := msg.MSH.Sequencenumber.Value;  //123;

    // Access the PID Segment
    AFName := msg.PID.PatientName.FamilyName.AsString; //Doe
    AGName := msg.PID.PatientName.GivenName.AsString;  //John
    AIDnumber:=msg.PID.PatientIDInternalID[0].IDNumber.AsString;
   //123456

  finally
    msg.Free;
  end;

end;



Message Parse (Dynamically way):
//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL722.BSL');
end;

procedure TForm1.bParseMessagePathClick(Sender: TObject);
var
  msg :TBSHL7Message;
  ASending  : string;
  ASeq      : string;
  AFName    : string;
  AGName    : string;
  AIDNumber : string;

begin

  try
    msg:=TBSHL7Message.Create('ADT_A01','22');

    msg.AsHL7:='MSH|^~\&|||Sending|||||||||123'+#13+
               'EVN|'+#13+
               'PID|||123456||Doe^John'+#13+
               'PV1|'+#13+#10;

    // Populate the MSH Segment
    ASending :=msg.S['MSH/Sendingfacility'];//Sending
    ASeq :=msg.S['MSH/Sequencenumber'];//123

     // Populate the PID Segment
    AFName:=msg.S['PID/PatientName/FamilyName'];//Doe
    AGName:=msg.S['PID/PatientName/GivenName'];//John;
    AIDNumber:=msg.S['PID/PatientIDInternalID(1)/IDNumber'];//'123456

  finally
    msg.Free;
  end;

end;




Creating Message :
//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL722.BSL');
end;

procedure TForm1.bMessageCreateClick(Sender: TObject);
var
  msg : TbsADT_A01_22;
begin
  try
    msg := TbsADT_A01_22.Create;

    // Populate the MSH Segment
    msg.MSH.Sendingfacility.Value:='Sending';
    msg.MSH.Sequencenumber.Value:='123';

    // Populate the PID Segment
    msg.PID.PatientName.FamilyName.AsString:='Doe';
    msg.PID.PatientName.GivenName.AsString:='John';
    msg.PID.PatientIDInternalID[0].IDNumber.AsString:='123456';

    Memo1.Lines.Append(msg.AsHL7);
    // MSH|^~\&|||Sending|||||||||123
    // PID|||123456||Doe^John
  finally
    msg.Free;
  end;

end;

Parsing Message :
const
  MsgORU_R01_22 =
  'MSH|^~\&|ABL735^ABL735 Operating Theatres|ABL735^ABL735 Operating Theatres|||'+
  '20010516135518||ORU^R01|20010516135518|P^not present|2.2' + #13 +
  'PID|1|||F87248654|Doe^John|||U' + #13 +
  'OBR|1||6^Sample #||||||||O||||Arterial^' + #13 +
  'NTE|1|L|443' + #13 +
  'OBX|1|ST|^pH^M||7.600|||N|||F|||20010503151400||' + #13 +
  'OBX|2|ST|^pO2^M||127|mmHg||N|||F|||||' + #13 +
  'OBX|3|ST|^pCO2^M||20.4|mmHg||N|||F|||||' + #13 +
  'OBX|4|ST|^Cl-^M||73|mmol/L||N|||F|||||' + #13 +
  'OBX|5|ST|^K+^M||5.5|mmol/L||N|||F|||||' + #13 +
  'OBX|6|ST|^Na+^M||125|mmol/L||N|||F|||||' + #13 +
  'OBX|7|ST|^Glu^M||11.3|mmol/L||N|||F|||||' + #13 +
  'OBX|8|ST|^Lac^M||10.0|mmol/L||N|||F|||||' + #13 +
  'OBX|9|ST|^Ca++^M||0.36|mmol/L||N|||F|||||' + #13 +
  'OBX|10|ST|^tHb^M||17.3|g/dL||N|||F|||||' + #13 +
  'NTE|1|L|314' + #13 +
  'OBX|11|ST|^sO2^M||.....|%||N|||F|||||' + #13 +
  'NTE|1|L|314' + #13 +
  'OBX|12|ST|^O2Hb^M||-58.4|%||<|||F|||||' + #13 +
  'NTE|1|L|314^94' + #13 +
  'OBX|13|ST|^COHb^M||110.4|%||>|||F|||||' + #13 +
  'NTE|1|L|314^93' + #13 +
  'OBX|14|ST|^MetHb^M||-6.5|%||<|||F|||||' + #13 +
  'NTE|1|L|314^94' + #13 +
  'OBX|15|ST|^tBil^M||.....|micromol/L||<|||F|||||' + #13 +
  'NTE|1|L|314^94' + #13 +
  'OBX|16|ST|^T^I||37.0|Cel|||||F|||||' + #13 +
  'OBX|17|ST|^FIO2^D||21.0|%|||||F|||||' + #13 +
  'OBX|18|ST|^pH(T)^M||7.600|||N|||F|||||' + #13 +
  'OBX|19|ST|^pCO2(T)^M||20.4|mmHg||N|||F|||||' + #13 +
  'OBX|20|ST|^SBE^C||-1.5|mmol/L|||||F|||||' + #13 +
  'OBX|21|ST|^pO2(T)^M||127|mmHg||N|||F|||||'+ #13#10;

//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL722.BSL');
end;

procedure TForm1.bParseMessageAdvClick(Sender: TObject);
var
   msg : TbsORU_R01_22;
   Patient : TbsPN_22;
   observation : TbsORU_R01_PATIENT_RESULT_ORDER_OBSERVATION_OBSERVATION_22;
   i : integer;
begin
   Memo1.Lines.Append('Message Parse (Advanced)');

   msg := TbsORU_R01_22.Create;
   //Parse message
   msg.AsString := MsgORU_R01_22;

   Patient:=msg.PATIENT_RESULT[0].PATIENT.PID.PatientName;

   // Shows John
   Memo1.Lines.Append('Patient Name : '+Patient.GivenName.AsString);

   Memo1.Lines.Add( 'OBSERVATIONRepCount : ' + IntToStr(
      msg.PATIENT_RESULT[0].ORDER_OBSERVATION[0].OBSERVATIONRepCount)
   );

  for i:=0 to msg.PATIENT_RESULT[0].ORDER_OBSERVATION[0].OBSERVATIONRepCount-1
      do begin
      observation := msg.PATIENT_RESULT[0].ORDER_OBSERVATION[0].OBSERVATION[i];
      Memo1.Lines.Append(
         observation.OBX.ObservationIdentifier.Text.AsString+#9#9+
         observation.OBX.ObservationValue.AsString);
   end;

   {
	OBSERVATIONRepCount : 21

	pH  7.600
	pO2  127
	pCO2  20.4
	Cl-  73
	K+  5.5
	Na+  125
	Glu  11.3
	Lac  10.0
	Ca++  0.36
	tHb  17.3
	sO2  .....
	O2Hb  -58.4
	COHb  110.4
	MetHb  -6.5
	tBil  .....
	T  37.0
	FIO2  21.0
	pH(T)  7.600
	pCO2(T)  20.4
	SBE  -1.5
	pO2(T)  127
	}
	FreeAndNil(msg);
end;

Setting / Getting Value :

There are more than one property to assign a value. These are listed below :

AsString Used to assign a value to the area. If the value is encoded in the special separator characters.
msg.PID.PatientName.FamilyName.AsString:='Doe';
RawValue Used to assign a value to the area. If the value is not encoded in the special separator characters.
adt_a01.MSH.FieldSeparator.RawValue:='|';


Using Path function :
//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL722.BSL');
end;

procedure TForm1.bCreateMessagePathClick(Sender: TObject);
var
  msg :TBSHL7Message;
  ArrayLen:Integer;
begin
  try
    // Set Message parameters OnCreate
    msg:=TBSHL7Message.Create('ADT_A01','22');

    // Populate the MSH Segment
    msg.S['MSH/Sendingfacility']:='Sending';
    msg.S['MSH/Sequencenumber']:='123';

     // Populate the PID Segment
    msg.S['PID/PatientName/FamilyName']:='Doe';
    msg.S['PID/PatientName/GivenName']:='John';

    msg.S['PID/PatientIDInternalID(1)/IDNumber']:='123456';
    msg.S['PID/PatientIDInternalID(2)/IDNumber']:='789';

    Memo1.Lines.Append(msg.AsString);

    // MSH|^~\&|||Sending|||||||||123
    // PID|||123456~789||Doe^John
  finally
    msg.Free;
  end;

end;

Generate XML message
//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL724.BSL');
end;

procedure TForm1.bMessageCreateAdvClick(Sender: TObject);
var
  msg : TbsORU_R01_24;
  msh : TbsMSH_24;
  pid: TbsPID_24;
  obr: TbsOBR_24;
  obx: TbsOBX_24;
  sn : TbsSN_24;
begin
  msg:=TbsORU_R01_24.Create;

  //MSH
  msh:= msg.MSH;
  msh.SendingApplication.NamespaceID.AsString:='GHH LAB';
  msh.SendingFacility.NamespaceID.AsString:='ELAB-3';
  msh.ReceivingApplication.NamespaceID.AsString:='GHH OE';
  msh.ReceivingFacility.NamespaceID.AsString:='BLDG4';
  msh.DateTimeOfMessage.TimeOfAnEvent.AsString:='200202150930';
  msh.MessageControlID.AsString:='CNTRL-3456';

  //PID
  pid:=msg.PATIENT_RESULT[0].PATIENT.PID;
  pid.PatientIdentifierList[0].ID.AsString:='555-44-4444';
  pid.PatientName[0].Familyname.Surname.AsString:='EVERYWOMAN';
  pid.PatientName[0].Givenname.AsString:='EVE';
  pid.PatientName[0].Secondandfurthergivennamesorinitialsthereof.AsString:='E';
  pid.PatientName[0].Nametypecode.AsString:='L';
  pid.MothersMaidenName[0].Familyname.Surname.AsString:='JONES';
  pid.DateTimeOfBirth.TimeOfAnEvent.AsString:='196203520';
  pid.AdministrativeSex.AsString:='F';
  pid.PatientAddress[0].Streetaddress.Streetormailingaddress.AsString:='153 FERNWOOD DR.';
  pid.PatientAddress[0].City.AsString:='STATESVILLE';
  pid.PatientAddress[0].Stateorprovince.AsString:='OH';
  pid.PatientAddress[0].Ziporpostalcode.AsString:='35292';
  pid.PhoneNumberHome[0].Telephonenumber.AsString:='(206)3345232';
  pid.PhoneNumberBusiness[0].Telephonenumber.AsString:='(206)752-121';
  pid.PatientAccountNumber.ID.AsString:='AC555444444';
  pid.DriversLicenseNumberPatient.Driverslicensenumber.AsString:='67-A4335';
  pid.DriversLicenseNumberPatient.Issuingstate_province_country.AsString:='OH';
  pid.DriversLicenseNumberPatient.Expirationdate.AsString:='20030520';

  // OBR
  obr:=msg.PATIENT_RESULT[0].ORDER_OBSERVATION[0].OBR;
  obr.SetIDOBR.AsString:='1';
  obr.PlacerOrderNumber.Entityidentifier.AsString:='845439';
  obr.PlacerOrderNumber.NamespaceID.AsString:='GHH OE';
  obr.FillerOrderNumber.Entityidentifier.AsString:='1045813';
  obr.FillerOrderNumber.NamespaceID.AsString:='GHH LAB';
  obr.UniversalServiceIdentifier.Identifier.AsString:='1554-5';
  obr.UniversalServiceIdentifier.Text.AsString:='GLUCOSE';
  obr.UniversalServiceIdentifier.Nameofcodingsystem.AsString:='LN';
  obr.ObservationDateTime.TimeOfAnEvent.AsString:='200202150730';
  obr.OrderingProvider[0].IDnumber.AsString:='555-55-5555';
  obr.OrderingProvider[0].Familyname.Surname.AsString:='PRIMARY';
  obr.OrderingProvider[0].Givenname.AsString:='PATRICIA P';
  obr.OrderingProvider[0].Degree.AsString:='MD';
  obr.OrderingProvider[0].Assigningauthority.NamespaceID.AsString:='LEVEL SEVEN HEALTHCARE, INC.';
  obr.ResultStatus.AsString:='F';
  obr.PrincipalResultInterpreter.OPName.IDNumber.AsString:='444-44-4444';
  obr.PrincipalResultInterpreter.OPName.FamilyName.AsString:='HIPPOCRATES';
  obr.PrincipalResultInterpreter.OPName.GivenName.AsString:='HOWARD H';
  obr.PrincipalResultInterpreter.OPName.Degree.AsString:='MD';

  // OBX
  obx:=msg.PATIENT_RESULT[0].ORDER_OBSERVATION[0].OBSERVATION[0].OBX;
  obx.SetIDOBX.AsString:='1';
  obx.ValueType.AsString:='SN';
  obx.ObservationIdentifier.Identifier.AsString:='1554-5';
  obx.ObservationIdentifier.Text.AsString:='GLUCOSE POST 12H CFST';
  obx.ObservationIdentifier.Nameofcodingsystem.AsString:='LN';

  sn:=TbsSN_24.Create;
  sn.Num1.AsString:='182';
  obx.ObservationValue[0]:= sn;
  obx.Units.Identifier.AsString:= 'mg/dl';
  obx.ReferencesRange.AsString:='70-105';
  obx.AbnormalFlags.AsString:='H';
  obx.ObservationResultStatus.AsString:='F';

  // XML format
  Memo1.Lines.Append('Message Create (Advanced)');
  Memo1.Lines.Text:=msg.AsXML;

  FreeAndNil(msg);
end;
XML Output

<ORU_R01 xmlns="urn:hl7-org:v2xml">
	<MSH>
		<MSH.1>|</MSH.1>
		<MSH.2>^~\&amp;</MSH.2>
		<MSH.3>
			<HD.1>GHH LAB</HD.1>
		</MSH.3>
		<MSH.4>
			<HD.1>ELAB-3</HD.1>
		</MSH.4>
		<MSH.5>
			<HD.1>GHH OE</HD.1>
		</MSH.5>
		<MSH.6>
			<HD.1>BLDG4</HD.1>
		</MSH.6>
		<MSH.7>
			<TS.1>200202150930</TS.1>
		</MSH.7>
		<MSH.9>
			<MSG.1>ORU</MSG.1>
			<MSG.2>R01</MSG.2>
		</MSH.9>
		<MSH.10>CNTRL-3456</MSH.10>
		<MSH.11>
			<PT.1>P</PT.1>
		</MSH.11>
		<MSH.12>
			<VID.1>2.4</VID.1>
		</MSH.12>
	</MSH>
	<ORU_R01.PATIENT_RESULT>
		<ORU_R01.PATIENT>
			<PID>
				<PID.3>
					<CX.1>555-44-4444</CX.1>
				</PID.3>
				<PID.5>
					<XPN.1>
						<FN.1>EVERYWOMAN</FN.1>
					</XPN.1>
					<XPN.2>EVE</XPN.2>
					<XPN.3>E</XPN.3>
					<XPN.7>L</XPN.7>
				</PID.5>
				<PID.6>
					<XPN.1>
						<FN.1>JONES</FN.1>
					</XPN.1>
				</PID.6>
				<PID.7>
					<TS.1>196203520</TS.1>
				</PID.7>
				<PID.8>F</PID.8>
				<PID.11>
					<XAD.1>
						<SAD.1>153 FERNWOOD DR.</SAD.1>
					</XAD.1>
					<XAD.3>STATESVILLE</XAD.3>
					<XAD.4>OH</XAD.4>
					<XAD.5>35292</XAD.5>
				</PID.11>
				<PID.13>
					<XTN.1>(206)3345232</XTN.1>
				</PID.13>
				<PID.14>
					<XTN.1>(206)752-121</XTN.1>
				</PID.14>
				<PID.18>
					<CX.1>AC555444444</CX.1>
				</PID.18>
				<PID.20>
					<DLN.1>67-A4335</DLN.1>
					<DLN.2>OH</DLN.2>
					<DLN.3>20030520</DLN.3>
				</PID.20>
			</PID>
		</ORU_R01.PATIENT>
		<ORU_R01.ORDER_OBSERVATION>
			<OBR>
				<OBR.1>1</OBR.1>
				<OBR.2>
					<EI.1>845439</EI.1>
					<EI.2>GHH OE</EI.2>
				</OBR.2>
				<OBR.3>
					<EI.1>1045813</EI.1>
					<EI.2>GHH LAB</EI.2>
				</OBR.3>
				<OBR.4>
					<CE.1>1554-5</CE.1>
					<CE.2>GLUCOSE</CE.2>
					<CE.3>LN</CE.3>
				</OBR.4>
				<OBR.7>
					<TS.1>200202150730</TS.1>
				</OBR.7>
				<OBR.16>
					<XCN.1>555-55-5555</XCN.1>
					<XCN.2>
						<FN.1>PRIMARY</FN.1>
					</XCN.2>
					<XCN.3>PATRICIA P</XCN.3>
					<XCN.7>MD</XCN.7>
					<XCN.9>
						<HD.1>LEVEL SEVEN HEALTHCARE, INC.</HD.1>
					</XCN.9>
				</OBR.16>
				<OBR.25>F</OBR.25>
				<OBR.32>
					<NDL.1>
						<CNN.1>444-44-4444</CNN.1>
						<CNN.2>HIPPOCRATES</CNN.2>
						<CNN.3>HOWARD H</CNN.3>
						<CNN.7>MD</CNN.7>
					</NDL.1>
				</OBR.32>
			</OBR>
			<ORU_R01.OBSERVATION>
				<OBX>
					<OBX.1>1</OBX.1>
					<OBX.2>SN</OBX.2>
					<OBX.3>
						<CE.1>1554-5</CE.1>
						<CE.2>GLUCOSE POST 12H CFST</CE.2>
						<CE.3>LN</CE.3>
					</OBX.3>
					<OBX.5>
						<SN.2>182</SN.2>
					</OBX.5>
					<OBX.6>
						<CE.1>mg/dl</CE.1>
					</OBX.6>
					<OBX.7>70-105</OBX.7>
					<OBX.8>H</OBX.8>
					<OBX.11>F</OBX.11>
				</OBX>
			</ORU_R01.OBSERVATION>
		</ORU_R01.ORDER_OBSERVATION>
	</ORU_R01.PATIENT_RESULT>
</ORU_R01>

Send Message with Indy (v.10)
const
  START_BLOCK = #$0B;
  END_BLOCK   = #$1C#$0D;

//Load library...
procedure TForm1.FormCreate(Sender: TObject);
begin
  BSHL7Library.LoadFromFile('..\data\BSHL722.BSL');
end;

procedure TForm1.Button1Click(Sender: TObject);
var
  MsgOut : AnsiString;
  MsgIn : AnsiString;
begin

   MsgOut:='MSH|^~\&|TestSendingSystem||||200701011539||ADT^A01||P|2.2|123'+#13+
           'PID|||123456||Doe^John'+#13;

   IdTcpClient1.Port := 100;
   IdTcpClient1.Host := '192.168.1.1';
   IdTcpClient1.Connect;

   // Send Message
   IdTCPClient1.IOHandler.Write(START_BLOCK+MsgOut+END_BLOCK);

   // Wait ACK Message
   MsgIn := IdTCPClient1.IOHandler.ReadLn(END_BLOCK);
   // Parse message...

end;

For more socket information see indy's idHL7.pas
Download Indy Project

Documentation

Download the document to get more information about this product.
This document contains :
- Installation
- Sample code for parse generate hl7 message
- Class properties and methods.

Download document Last Update : 2016-05-1
Class documentation in HTML
